Side open containers represent a specialized category within the broader family of freight containers, distinguished by their unique access configuration that allows cargo to be loaded and unloaded from the longer side(s) rather than solely through the end doors. This design addresses logistical challenges inherent in handling certain types of goods, optimizing efficiency in loading operations, space utilization, and adaptability to diverse cargo shapes and sizes. Understanding the main structural features of a side open container requires an exploration of its framework, opening mechanisms, reinforcement systems, flooring, corner posts, and ancillary components, all of which work in concert to deliver functionality while maintaining the robustness expected of intermodal transport units.
Framework and Base Structure
At the core of any side open container lies a rigid framework constructed from high-strength steel profiles, typically corten steel, which provides exceptional resistance to corrosion and mechanical stress during transport, stacking, and handling. The base structure comprises longitudinal bottom rails and transverse cross members welded together to form a rectangular platform. This platform supports the container’s payload and distributes weight evenly to the four corner castings—integral components that interface with twist locks on ships, trucks, and rail wagons, ensuring secure lashing during multimodal transit.
The floor panels, usually made from marine-grade plywood or steel, are affixed to the base frame. They must withstand concentrated loads from heavy cargo and resist abrasion, moisture, and fungal growth. In side open containers, the floor’s attachment to the frame is reinforced at points aligned with potential stress concentrations caused by lateral loading when the side doors are open, preventing warping or delamination under uneven weight distribution.
Side Opening Mechanism and Door Structure

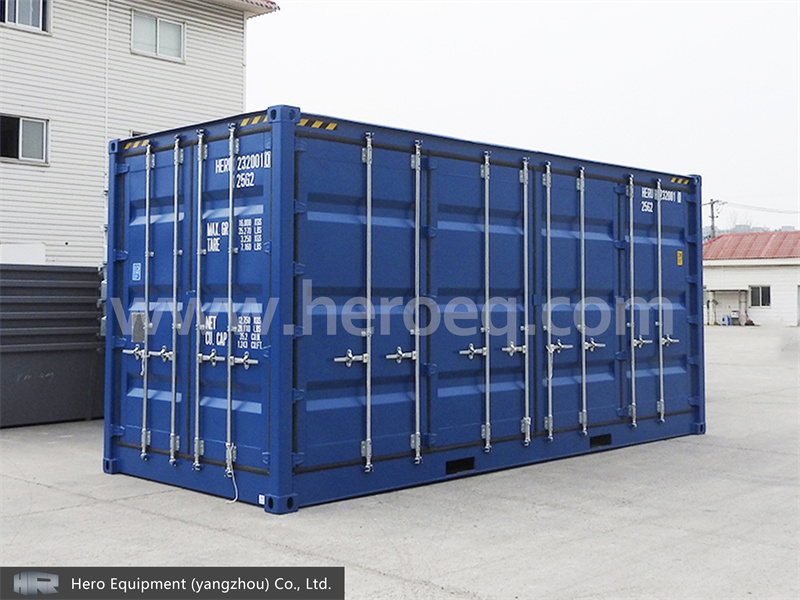

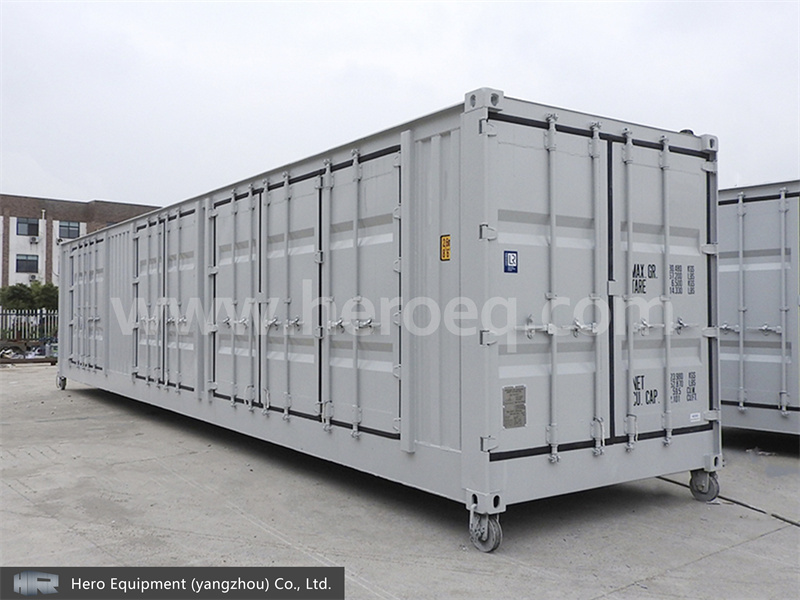

The defining feature of a side open container is its side access system, which typically consists of one or two large door panels spanning the full length of one or both longer sides. These panels are mounted on robust hinges welded to the top and bottom rails of the side frame, allowing them to swing outward to a wide angle—often 180 degrees or more—providing unobstructed access to the interior.
The door panels themselves are fabricated from corrugated steel sheets, a design choice that enhances rigidity without excessive weight. Corrugations run horizontally, increasing bending resistance against vertical loads, while the sheet thickness is calibrated to balance strength with portability. Each panel is equipped with locking assemblies comprising multiple horizontal and vertical rods that engage with keepers fixed to the opposite side frame when closed, creating a seal against weather ingress and unauthorized access.
Seals play a critical role in the side opening system. Continuous rubber gaskets are installed along the perimeter of the door openings and on the mating surfaces of the door panels. When closed, these gaskets compress to form a barrier against rain, dust, and wind, maintaining the container’s weatherproof integrity. The locking rods, when fully engaged, not only secure the doors but also tension the seals, enhancing their effectiveness across varying temperature and humidity conditions.
Reinforcement Systems for Lateral Stress
Opening the side doors introduces lateral forces that are not present in end-opening containers, necessitating additional reinforcement in the side frame and door assembly. Vertical stanchions are integrated into the side frame at regular intervals, running from the base rail to the top rail. These stanchions act as compression members, resisting inward deflection when cargo is loaded from the side and preventing the frame from buckling under uneven lateral pressure.
Cross bracing, often in the form of diagonal steel bars or plates, connects the vertical stanchions and the top/bottom rails. This triangulation disperses stress across the side frame, mitigating the risk of deformation during side loading or when the container is subjected to high winds or rough handling. The intersection points of braces and stanchions are welded with precision to ensure load transfer without weak spots.
The hinge assemblies are likewise reinforced. Heavy-duty pins and bushings, made from hardened steel, are employed to withstand repeated opening and closing cycles, as well as the torque exerted by wind or unbalanced cargo loads. Some designs incorporate grease nipples for lubrication, extending the lifespan of moving parts and ensuring smooth operation over years of service.
Corner Posts and Roof Structure
Corner posts are pivotal to the container’s overall structural integrity, serving as the primary vertical load-bearing elements. In side open containers, corner posts are often reinforced compared to standard dry containers due to the additional stresses imposed by side door operation. They are fabricated from thick-walled steel tubes, welded at both ends to the corner castings and the top and bottom rails, forming a continuous load path from the roof to the base.
The roof structure of a side open container typically mirrors that of a standard container, consisting of corrugated steel sheets supported by roof bows—arched members spanning the width of the container. However, in side open variants, the roof bows may be spaced closer together above the side door openings to counteract the reduced lateral stiffness caused by the missing side panels when doors are open. This prevents the roof from sagging under snow, wind, or dynamic loads during transit.
For containers with roof hatches or additional ventilation, the roof structure is modified to accommodate these features without compromising strength. The hatches, when present, are sealed with similar gasket systems to the side doors and reinforced with frames to prevent distortion.
Integration with Standard Container DimensionsSide open containers adhere to the modular dimensions of the ISO container system, with standard lengths of 20 feet, 40 feet, and occasionally 45 feet, and heights of 8 feet 6 inches (standard) or 9 feet 6 inches (high cube). This compatibility ensures they can be stacked, transported, and handled using the same infrastructure as conventional containers, including cranes, reach stackers, and ship cells.
The internal dimensions are slightly reduced compared to end-opening containers of the same external size, owing to the thickness of the side frame members and door assemblies. However, the trade-off is justified by the enhanced accessibility, particularly for cargo that is too long or bulky to be loaded through end doors or requires frequent side access during loading/unloading.
Ancillary Components and Operational Considerations
Beyond the primary structure, side open containers may include features such as forklift pockets—openings in the base frame that allow handling by forklifts—and lashing rings embedded in the floor and walls for securing cargo. These rings are positioned to accommodate straps or chains without interfering with the side door operation.
Ventilation is another consideration; some side open containers are fitted with louvered panels or mesh inserts in the side doors to promote airflow, beneficial for cargo that is sensitive to moisture buildup or requires temperature regulation. Anti-slip coatings or patterns may be applied to the floor to prevent cargo shift during transit, especially when the container is partially loaded or the side doors are open for extended periods.
The main structural features of a side open container collectively address the dual imperatives of robust transport capability and convenient side access. From the reinforced steel framework and base structure to the hinged side door assemblies with advanced sealing and locking systems, every component is engineered to withstand the rigors of intermodal transport while facilitating efficient cargo handling. Reinforcement systems counter lateral stresses, corner posts and roof bows maintain overall rigidity, and adherence to ISO dimensions ensures interoperability. Together, these features make side open containers indispensable for transporting oversized, awkwardly shaped, or frequently accessed cargo, bridging the gap between traditional container functionality and specialized logistical needs.
